THE EGLATH ARX, ONE BIKE, ALL ROADS

The Elves Eglath ARX is our most versatile road bike yet. It has been specifically designed for riders who want it all: speed, comfort, confidence, and the freedom to go wherever the road ahead takes them. Road, light gravel, long climbs, fast descents, or endurance challenges and adventures, if you're only going to have one bike, make it this one.

Stable - At its core, the Elves Eglath ARX has been designed and manufactured using high-modulus Japanese Toray T800 and T1000 carbon fibre, balancing stiffness, compliance, and weight for maximum efficiency during long days in the saddle. The semi-aero tube profile reduces drag where it matters, while maintaining a more forgiving geometry optimised for endurance. The result is a bike that’s as fast on the open road as it is stable on rougher terrain.

Responsive - In true Elves fashion, the Eglath ARX combines race-bred pedigree that’s deeply rooted in our DNA with genuine all-road capability. Its endurance-inspired geometry positions the rider in a more upright position and features a shorter reach and taller stack for enhanced comfort and stability over long distances, while maintaining the precise and highly responsive handling and reactive feel expected from a high-performance chassis.

Versatile - Where the road ends, the Elves Eglath ARX keeps going. With clearance for up to 700x32C tyres, the frame absorbs vibration and irons out mixed terrain without compromising momentum. A robust T47 bottom bracket system enhances drivetrain rigidity for maximising power transfer, combining this with a UDH hanger and the performance of modern disc brakes, the Eglath ARX will deliver the versatility, confidence and control in all weather conditions.

Compatibility - Versatile by Design The Eglath ARX has been designed with complete versatility in mind, giving riders the freedom to build their perfect setup. It’s fully compatible with all modern 11 and 12 speed mechanical, and the latest 11, 12, and 13 speed electronic groupsets. Whether you prefer a 1x or 2x crankset, the Eglath ARX will adapts and comply with your chosen configuration.

Paired with our compact AeroEvo handlebars, the ARX’s fully internal cable routing keeps the aesthetic clean, aerodynamic, and efficient, while maintaining flawless functionality across both wired and wireless systems.

Safety -The Elves Eglath ARX meets EN14766 and ISO 4210-6: 2023 test standards, confirming its compliance with international benchmarks for safety, durability, and structural integrity. Together, these certifications reflect our commitment to delivering structurally optimised performance that riders can trust, wherever the road leads.

Individualism - Created in partnership with DSD, our Hong Kong design studio, and informed by the Pantone selections chosen by our riders globally, the Eglath ARX is available in eight stunning standard colours. Our design philosophy is rooted in an understanding of what riders truly want, individuality, creativity, and accessibility. That’s why our custom paint programme is open to everyone, celebrating personal choice without the premium price tag.

For weight conscious customers, we also offer a matte black finish, shaving an average of 110 g from each frameset.

Warranty - The Elves design philosophy ensures our products are trusted and well respected within the industry in terms of safety and durability. However, to provide our riders with additional security and peace of mind, Elves bikes offer a 5-year global warranty on our frames and forks, and 2 years on our wheels, handlebars, and saddles.

Accessories - We are delighted to provide complementary accessories, including the rider’s choice of either a BB386 24R Shimano compatible or a BB386 29R SRAM DUB bottom bracket. Further, as standard, Elves Bikes frameset purchases include one of our headsets, three 10 mm integrated handlebar spacers, HPS03 headset spacers, adapters for traditional bars, and a cable routing stem adapter allowing the fitment of standard bars.

Sizing - To support Elves Bikes exponential global growth and expansion into Western markets, the Elves Eglath ARX is available in the following frame sizes, 46 cm, 49 cm, 52 cm, 55 cm, and 58 cm. Please refer to the detailed geometry provided to gain further insight.

Elves Bikes Promise - Together with our valued customers, Elves Bikes are globally transforming the price point for performance. We are committed to creating far greater rider equality through the production of quality products at affordable price points. We do not believe that riders should have to make the difficult choice or compromise between price and quality, at Elves Bikes, we deliver both.

We strive to create inclusive opportunities in everything we do, ensuring that our riders globally can unleash their true cycling potential.

FRAME

·FULL-CARBON (TORAY T800+T1000)
·GEOMETRY: PRO
·SEAT CLAMP: INTEGRATED
·HEADSET BEARING: 1-1/2"X7mm LOWER,1-1/2" X7mm UPPER
·BRAKE: FLAT MOUNT
·BOTTOM BRACKET: T47 THREADED BOTTOM
·ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE
·EPS+LATEX BLADDER MOULDING TECHNIQUE
·FULL INTEGRATED CABLE ROUTING
·THRU AXLE DIMENSION: M12X1.0X170 mm(142mm)
·MAX TYRE SIZE: 700CX32C
·MAX ROTOR SIZE: UP TO 160mm

FORK

·FULL-CARBON FORK
·OFFSET: 45mm
·BRAKE: FLAT MOUNT
·STEER TUBE LENGTH: 300mm
·THRU AXLE DIMENSION: M12X1.5X126 mm
·MAX ROTOR SIZE: UP TO 160mm

SEATPOST

·LENGTH: 400mm
·SINGLE BOLE PIVOT PRECISE ADJUSTMENTS
·SEATPOST: FULL-CARBON
·SADDLE CLAMP: 7X7mm AND 7X10mm COMPATIBLE
·OFFSET:12mm is the standard inclusion; 25mm is available by request

COLOUR

·Black & Matt Silver
·Chameleon (Black Red) & Matt Rose Pink
·Chameleon (Green Gray) & Matt Black
·Litchi White & Matt Chameleon (Brown & Lichen Green)
·White & Matt Lemon Yellow

FRAME SIZE

·46/49/52/55/58

WEIGHT

·46 FRAME WEIGHT: 980g (UNPAINTED W/O METAL PARTS)
·49 FRAME WEIGHT: 1010g (UNPAINTED W/O METAL PARTS)
·52 FRAME WEIGHT: 1040g (UNPAINTED W/O METAL PARTS)
·55 FRAME WEIGHT: 1070g (UNPAINTED W/O METAL PARTS)
·58 FRAME WEIGHT: 1100g (UNPAINTED W/O METAL PARTS)
·FORK WEIGHT: 380g(W/O THRU AXLE)
·SEATPOST WEIGHT: 190g WITH METAL PARTS
·FRONT THRU AXLE WIGHT:23g
·REAR THRU AXLE WIGHT: 28g
·SINGLE COLOR PAINT WEIGHT: 80g
·TWO-TONE PAINT WEIGHT：130g
·THREE-TONE PAINT WEIGHT: 180g
·HEADSETS WEIGHT:200g
·FRAME METAL PARTS:100g

ACCESSORIES

·T47-24R(Shimano) /T47-29R(SRAM DUB)/T47-30R(ROTOR)
·ELVES FALATH ARX HEADSET
·INTEGRATED HANDLEBAR SPACERS 3pcsX10mm
·CABLE ROUTING ADAPTER SPACER FOR REGULAR STEM
·Di2 BATTERY MOUNT
·INTERNAL HOUSING DAMPER

CERTIFICATION

·BOTH EN 14766 AND ISO 4210-6:2023

TORQUE VALUES

·SADDLE RAIL BOLTS:10-12Nm
·SADDLE CLAMP BOLTS:10-12Nm
·STEM (STEERER):6Nm
·STEM (HANDLEBAR):6Nm
·FRONT DERAILLEUR HANGER:3Nm
·REAR DERAILLEUR HANGER:20Nm
·WATER BOTTLE CAGE BOLTS:3Nm
·FRONT/REAR CALIPER: 6Nm
·FORK COMPRESSION PLUG：10-12Nm
·FRONT/REAR Thru Axle: 10-12Nm
·COMPUTER MOUNT BOLTS:3Nm

Eglath ARX

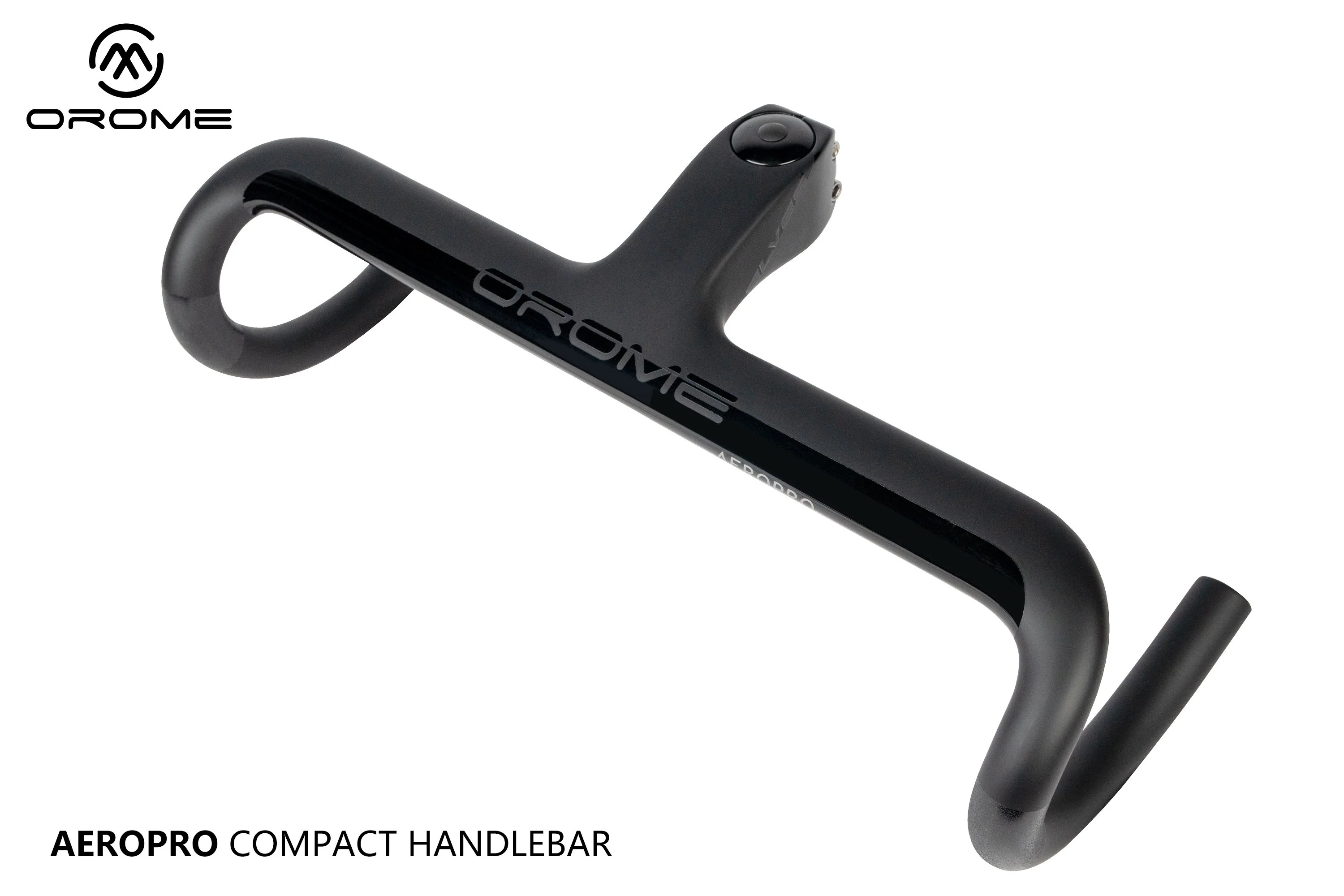

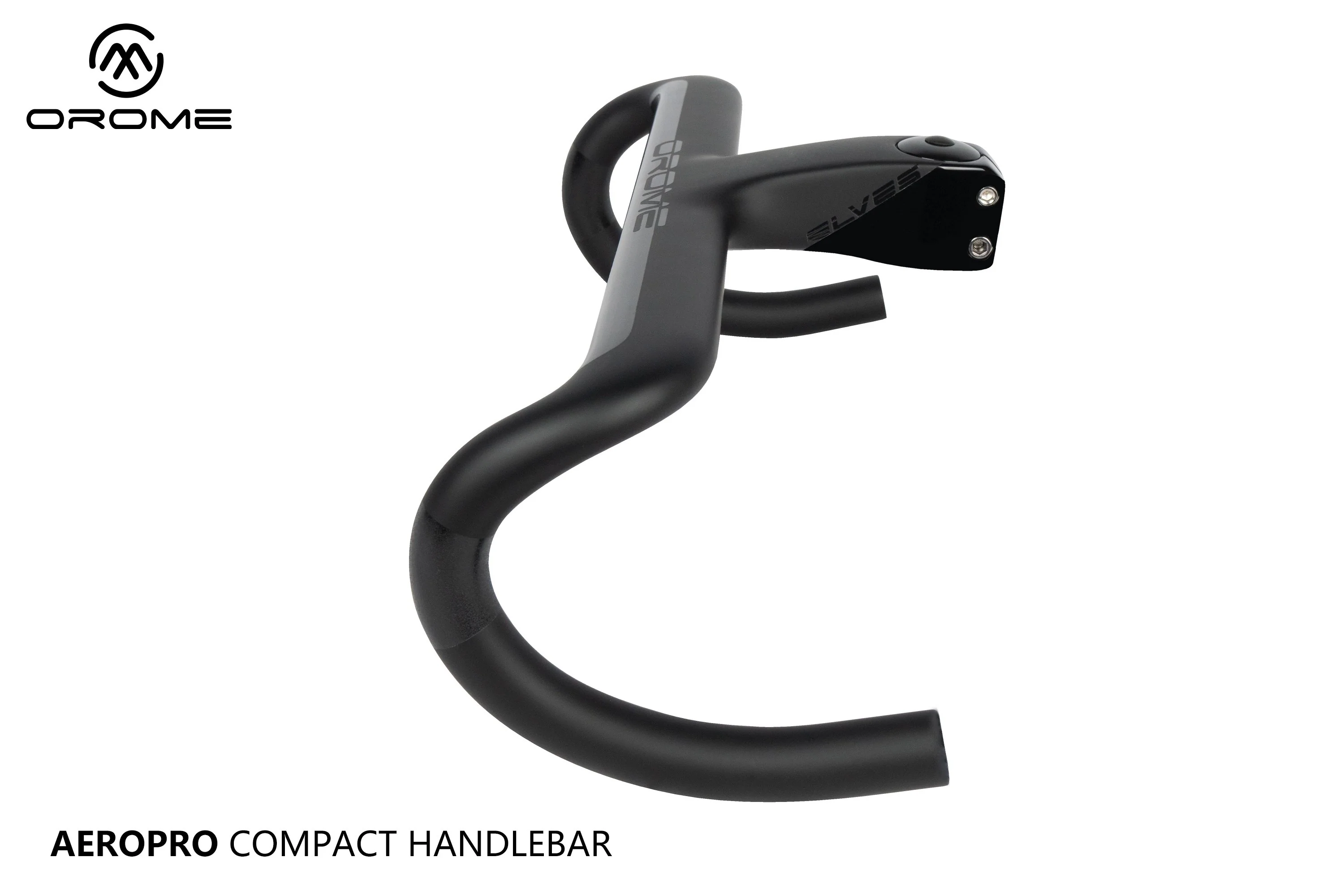

Orome AeroPro Handlebar

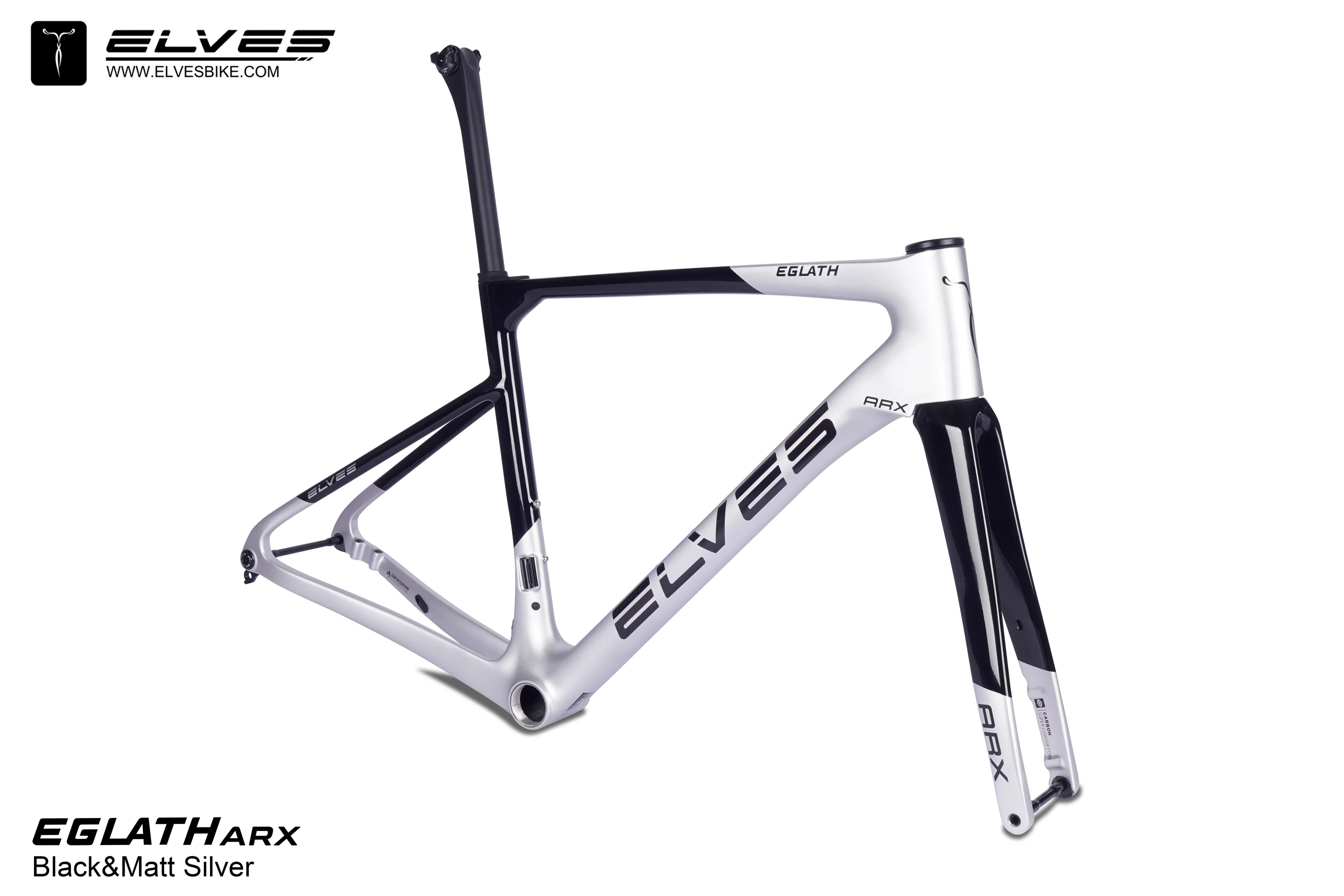

Eglath ARX Frameset
