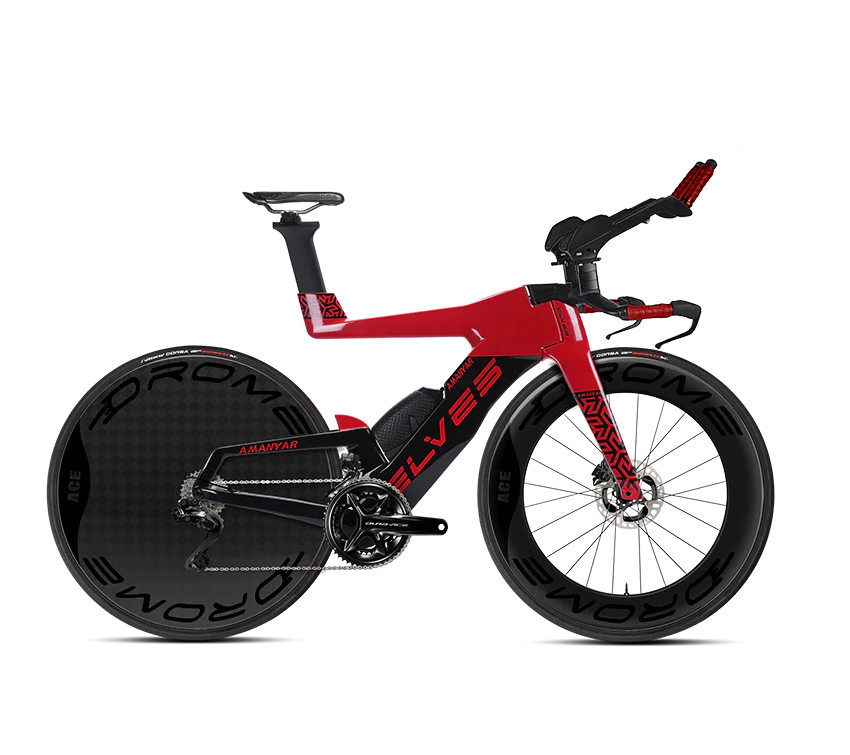

Shimano Ultegra Di2 Build
OROME Valar ACE BG-D Disc Rear Wheel & 80mm Deep Front Wheel with TH01 Hubs and Orome AeroRay PRO Triathlon Handlebar. With Custom Factory Paint included. Or Save some money and get the OROME Valar 80SA Series 80mm Wheelset.

Want an alternate build? Reach out and we'll work with you for your dream build.

Where Speed Meets Endurance

Triathletes demand speed, precision, and comfort, for peak race performance. The Amanyar 1.0 Disc combines optimised aerodynamics, the torsional strength required for effective power transfer, and the adjustability to achieve and maintain race-winning pace over varied distances.

Built to go the Distance

The Amanyar 1.0 has been designed with up to 2.25 litres of fuel and hydration storage, reducing the requirement for an in race stop, gaining you critical seconds. 500ml can be stored in the aerodynamic downtube bottle and up to 750ml behind the saddle. The remaining 1 litre is integrated inside the top-tube, utilising a bladder and hydration tube for handsfree hydration, whilst remaining in the aero position.

Engineered for your Toughest Race

The design of the Amanyar 1.0 positions the rider in an aggressive aerodynamic riding position to further reduce drag and improve efficiency.

Applying the EPS and latex bladder moulding technique, we have constructed the frameset utilising the trusted Toray T800 Japanese carbon fibre, reinforced by Toray T1000 in key areas such as the headtube and bottom bracket to obtain the optimal strength to weight ratio. The result is a stiff, highly responsive riding experience that provides the rigidity to transfer raw watts into forward momentum, preventing critical power loss caused by frame flexing during pedalling. Elves Bikes commitment to continual improvement has led to the use of a T47 threaded bottom bracket for ease of building and ongoing maintenance.

Exceptional Handling and Choice

With Triathlons ranging from a sprint to an ultra-ironman, it’s challenging to find a “one bike fits all” solution. To support this, the Amanyar 1.0 is available with a choice of two adjustable aerobars, the Orome AeroRay Sport TT bar, or alternatively the AeroRay Pro Ergonomic TT bar. This aids triathletes to design their cockpit to their specification, in accordance with the individual race conditions and distance.

The modern design, with a modular stem and bar combination, provides a compact integrated-looking cockpit, offering exceptional handling around corners and responsiveness when standing on short climbs. Both the AeroRay Sport, and AeroRay Pro, come in two bar width sizes (400mm is the standard inclusion & 420mm is a by request option) with an adjustable stem, front and back handlebar extensions, and left and right adjustable forearm rests. This optimal riding position allows triathletes to draw their upper body and arms both forwards and inwards into a tucked aero position, which ultimately minimises wind-distance drag, especially at high speeds.

Click here to go the AeroRay Handlebar page for full bar specifications.

Click here to see our Amanyar and AeroRay Pro Bars Build Video

Size Guide

Frame Size 45cm - Your Height 160-172cm - Standover Height 706mm
Frame Size 48cm - Your Height 170-178cm - Standover Height 750mm
Frame Size 51cm - Your Height 176-188cm - Standover Height 779mm
Frame Size 54cm - Your Height 185-195cm - Standover Height 806mm

Wheelset

ACE BG-D Disc Rear Wheel & 80mm Deep Front Wheel

Drivetrain

Battery
- Shimano BT-DN300 Di2 Battery
Rear Derailleur
- Shimano Ultegra Di2 RD-R8150 12s
- Weight: 260 g
Front Derailleur
- Shimano Ultegra Di2 FD-R8150
- Weight: 111 g
Shift Lever
- Shimano Dura-Ace Di2 R9160 Remote TT
- Weight: 40 g
Cassette
- Shimano Ultegra R8100,12-speed, 11-30T
- Number of sprockets: 12
- Range: 11-30
Crank
- Shimano Ultegra FC-R8100
- Number of chainrings: 2
Bottom bracket
- Shimano Pressfit BB72
- Bottom bracket standard: PF 86,5
- Weight: 65 g
Chain
- Shimano CN-M8100 12s

Brakes

Brake
- Shimano Flat Mount Adapter +20mm
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 ST-R9180
- Number of pistons: 2
- Weight: 263 g
Shift-/ Brake Lever
- Shimano Dura-Ace Di2 ST-R9180
- Number of pistons: 2
- Weight: 264 g
Brake Rotor
- Shimano Ultegra RT-CL800
- Size: 160 mm
- Weight: 112 g

Amanyar 1.0

FRAME

FULL-CARBON (TORAY T800+T1000 )

GEOMETRY: PRO

SEAT CLAMP: INTEGRATED

HEADSET BEARING: 1-1/2" LOWER (Φ52X7X45°), 1-1/8" UPPER (Φ41.8X6.5X45°)

BRAKE: FLAT MOUNT

BOTTOM BRACKET: T47

ELECTRIC DRIVETRAIN: Di2 & E-TAP COMPATIBLE

EPS+LATEX BLADDER MOULDING TECHNIQUE

FULL INTEGRATED CABLE ROUTING

THRU AXLE DIMENSION: M12XP1.0X170 mm (142mm)

MAX TYRE SIZE: 700CX28C

MAX ROTOR SIZE: UP TO 160MM

RIDERS WEIGHT LIMIT: 100kg

Fork

FULL-CARBON FORK

OFFSET: 45mm

BRAKE: FLAT MOUNT

STEER TUBE LENGTH: 250mm

THRU AXLE DIMENSION: M12XP1.5X125 mm (100mm)

MAX ROTOR SIZE: UP TO 160MM

Seat Post

LENGTH: 300mm

SINGLE BOLE PIVOT PRECISE ADJUSTMENTS

SEATPOST: FULL-CARBON

SADDLE CLAMP: 7X7mm AL RAIL CLAMP AND 7X10mm CARBON RAIL CLAMP

SADDLE CLAMP POSITION: 18mm FORE/AFT ADJUSTABLE

Stem

MATERIAL: AL 7075 CNC BLACK

LENGTH: 100mm

HANDLEBAR CLAMP: Φ31.8mm

HANDLEBAR CLAMP WIDTH: 48mm

RISE: -17°

Weight

FRAME WEIGHT: 1640g (SIZE 48, UNPAINTED W/O METAL PARTS)

FORK WEIGHT: 560g ( SIZE 48, UNPAINTED W/O THRU AXLE)

SEATPOST WEIGHT: 288g

STEM WEIGHT: 290g

FRONT THRU AXLE WIGHT:43g

REAR THRU AXLE WIGHT: 30g

WATER BOTTLE + BOTTLE CAGE WEIGHT: 93g

HYDRATION BLADDER SYSTEM WEIGHT: 100g

Single color paint weight: 80g

Two-tone paint weight：120g

Three-tone paint weight: 180g

Certification and Test standards

BOTH EN 14766 AND ISO 4210-6:2023

Accessories

Bottom Bracket: T47-24R (Shimano)

ELVES HEADSET

UDH DERAILLEUR HANGER X2

DOWNTUBE BOTTLE CAGE + BOTTLE

HYDRATION BLADDER BAG

SEATPOST BOTTLE CAGE MOUNT

STEM

FRONT DERAILLEUR MOUNT COVER

Size

45，48，51，54

Colors

TIFFANY BLUE & SILVER

FLAMINGO PINK & WHITE

RED & PIANO BLACK

CHAMELEON (BLACK/RED) & SILVER

WHITE & CHAMELEON (GREEN GRAY)

CHAMPAIGN GOLDEN & CHAMELEON (NEBULA)

PIANO BLACK & GOLDEN

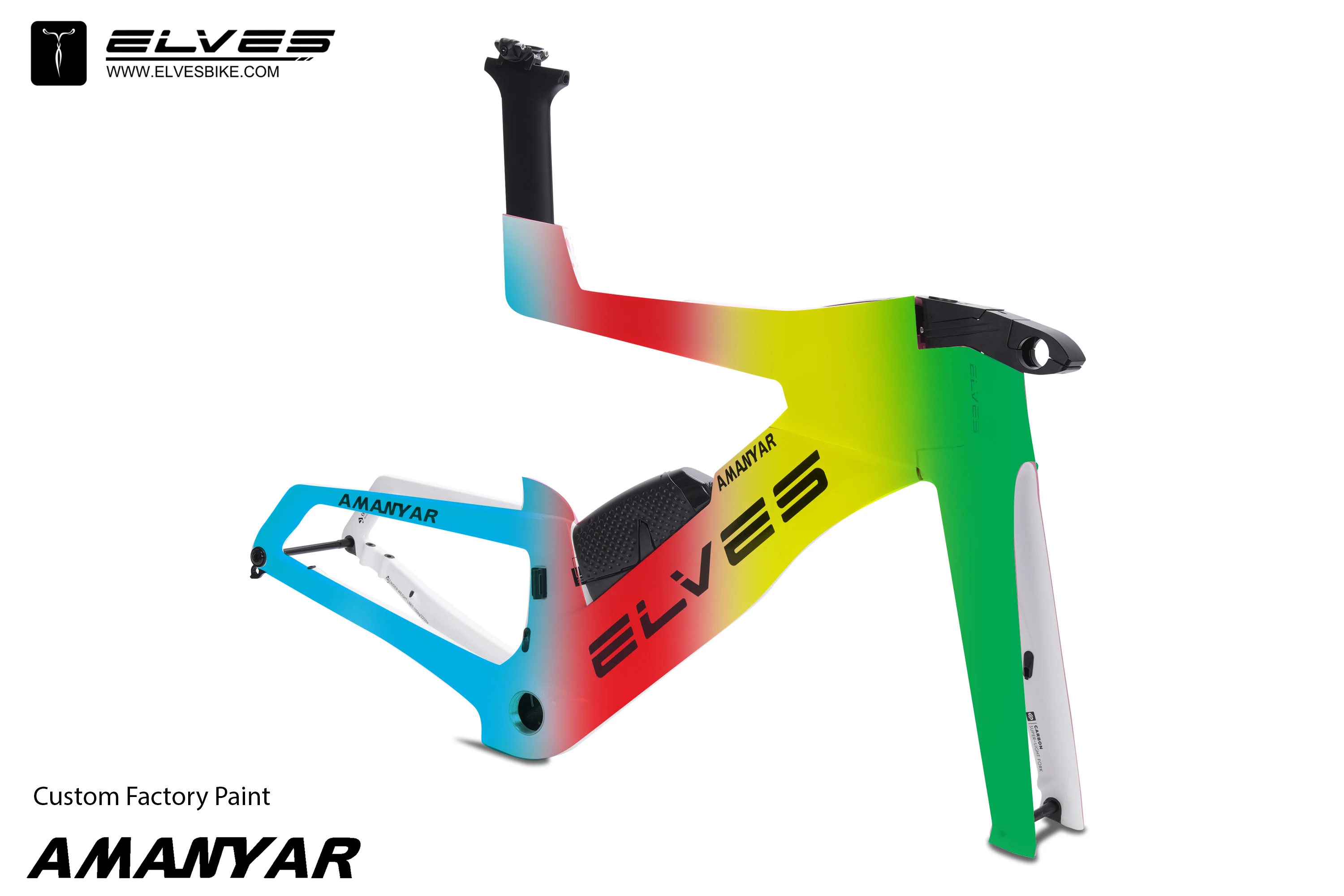

Custom Factory Paint (Contact us to design your frame :)

TORQUE VALUES

SEATPOST BOTTLE MOUNT BOLTS: 4Nm

SADDLE RAIL BOLTS: 12Nm

INTEGRATED SEATPOST CLAMP: 8-12Nm

FORK STEERER TOP CAP BOLT: 6Nm

HANDLEBAR CLAMP BOLTS: 12Nm

STEM TOP COVER BOLTS: 2Nm

FRONT DERAILLEUR HANGER: 3Nm

UDH BOLT: 25Nm

WATER BOTTLE CAGE BOLTS: 3Nm

FRONT/REAR CALIPER: 6Nm

FORK STEERER COMPRESSION PLUG：10-12NM

FRONT/REAR THRU AXLE: 10NM-12NM

COMPUTER MOUNT: 3NM

TOPTUBE HYDRATION BLADDER CAP BOLT: 2Nm

Model	OROME AERORAY PRO TT HANDLEBAR
Base Bar Drop/Rise(c-c)	-45mm/+45mm
Base Bar Weight	1170g
Base Bar Width(c-c)	400/420
Diameter Handlebar	31.8mm
Material	Toary T800 UD Carbon Fiber
Finish	Matt Black & Glossy Black
Certification	EN ISO 4210
Extension Bars Length Adiustment	340mm to 400mm
Armrest	full adjustable with pads included
Armrest Height Adjustment	Omm to 80mm (20mm X4pcs spacers)
Extension Bars Angle	18°
Accessorles	Computer Mount Tall Stack Bridge M5 Bolts X4 (Length 110mm for 80mm stack height) M5 Bolts X4( Length 9Omm for 60mm stack height) M5 Bolts X4 (Length 70mm for 40mm stack height) M5 Bolts X4 (Length 50mm for 20mm stack height) Arm Pad X2 20mm spacers X8
